Cov khoom no yog qhov zoo tagnrho rau siv rau hauv cov chaw lag luam loj, cov tsev lag luam, thiab cov chaw nyob deb nroog uas muaj kev txwv tsis pub nkag mus rau cov khoom siv hluav taws xob. Nws yog qhov zoo tshaj plaws rau kev siv lub tshuab hluav taws xob rov qab, cov khoom siv hluav taws xob tsis cuam tshuam (UPS), hluav taws xob tsheb (EVs), microgrids, thiab lwm lub zog siv hluav taws xob.
Txoj Cai Ua Haujlwm
Lub Chaw Tso Hluav Taws Xob Hluav Taws Xob ua haujlwm los ntawm kev khaws cov hluav taws xob tsim los ntawm cov khoom siv hluav taws xob txuas ntxiv xws li hnub ci thiab cua. Lub zog no yog tom qab ntawd khaws cia rau hauv cov roj teeb lithium-ion, uas tom qab tso tawm thaum lub sijhawm xav tau siab tshaj lossis lub zog tsis txaus. Lub tshuab hluav taws xob siv hluav taws xob siv hluav taws xob hloov hluav taws xob ncaj qha (DC) hluav taws xob rau hluav taws xob hloov hluav taws xob (AC) hluav taws xob, uas tuaj yeem siv los ntawm cov neeg siv kawg.
Paub meej rau Roj Teeb Cia Lub Zog Chaw nres tsheb:

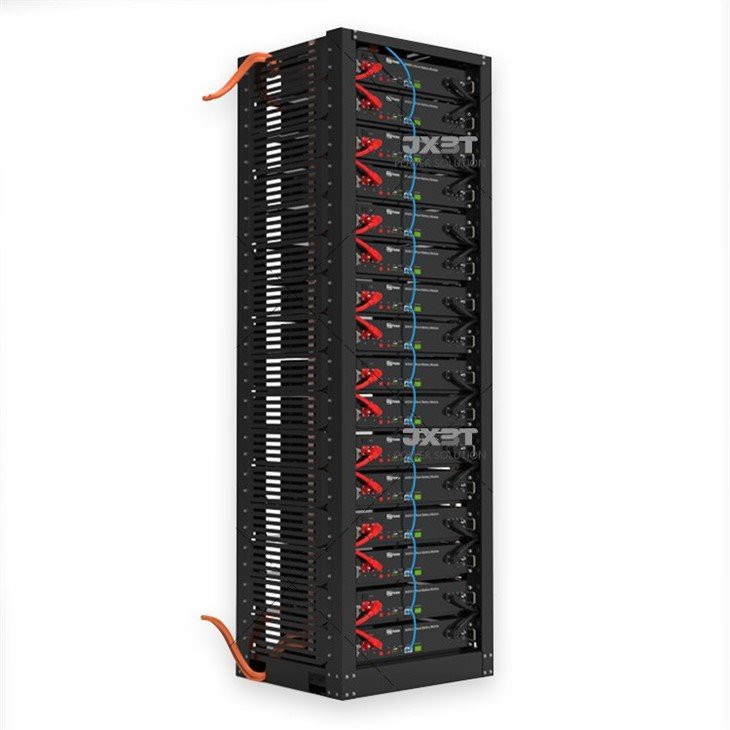

JXBT roj teeb System
Lub roj teeb lub peev xwm siab dua, lub hnub ci zog ntau dua yog khaws cia. Thaum lub roj teeb hnub ci tau teeb tsa ua ib feem ntawm lub hnub ci vaj huam sib luag, nws tuaj yeem khaws cov hluav taws xob hnub ci ntau dhau es tsis txhob xa rov qab mus rau daim phiaj. Yog tias lub hnub ci vaj huam sib luag tsim hluav taws xob ntau dua li qhov xav tau, lub zog ntau dhau mus rau kev them lub roj teeb.
Peb 48V roj teeb system txhawb lub hnub ci zog cia rau ob qho tib si kev lag luam thiab kev lag luam. Lub kaw lus tau tsim los ntawm kev sib koom ua ke ntawm Basic Storage Battery hauv kev sib txuas nrog ntse BMS (Battery Management System)
Nta
◆ Ntau tshaj 10 xyoo ntawm kev siv roj teeb & kev xa tawm
◆ Zoo heev, cov kev pabcuam siab heev, thiab cov nqi sib tw
◆ Teb hauv 24 teev ua haujlwm
◆ Pab neeg R & D pab txhawb nqa
|
Qauv |
TIAB SA 48200 |
TIAB SA 48400 |
TIAB SA 48500 |
TIAB SA 48600 |
|
Cov yam ntxwv dav dav |
||||
|
Nominal voltage |
51.2V |
51.2V |
51.2V |
51.2V |
|
Nominal Capacity @0.2C |
200 Aw |
400 Aw |
500 Aw |
600 Aw |
|
Nominal Zog |
10.24 kWh |
PEB 20.48 kWh |
PEB 25.60 kWh |
30.72 kWh os |
|
Qhov Loj (WxDxH) |
600x600x850mm |
600x600x1400mm |
600x600x1600mm |
600x600x1800mm |
|
Kwv yees li. Qhov hnyav |
30.3 KWG |
49,5 KG |
50.6KG ib |
51.8 KWG |
|
Cov yam ntxwv hluav taws xob |
||||
|
Kev khiav hauj lwm voltage |
42V~54V |
44.8V~57.6V |
42V~53.2V |
42V~53.2V |
|
Max. Kev them nyiaj tam sim no |
100A |
200A |
200A |
300A |
|
Max. Tshem tawm tam sim no |
100A |
200A |
200A |
300A |
|
Discharge Cut-off Voltage |
44.8V |
44.8V |
44.8V |
44.8V |
|
Faraday Charging Efficiency |
Ntau dua lossis sib npaug li 98 feem pua |
|||
|
Hluav taws xob them Efficiency |
Ntau dua lossis sib npaug li 92 feem pua |
|||
|
Internal Resistance |
80mΩ |
55mΩ |
60mΩ |
60mΩ |
|
Kev tso tawm tus kheej |
Tsawg dua lossis sib npaug li 3.5 feem pua |
|||
|
Lub neej voj voog |
6000 Cycle |
|||
|
Cov xwm txheej ua haujlwm |
||||
|
Kev them nyiaj ua haujlwm kub |
0 degree ~ 45 degree |
|||
|
Tshem tawm kev ua haujlwm kub |
-10 degree ~ 45 degree |
|||
|
Cia Kub |
-20 degree ~ 45 degree |
|||
|
Cia Duration |
12 Lub Hlis 20 degree ~ 25 degree |
|||
|
Dej Dust Resistance |
IP30 |
|||
|
Parallel Function |
Kev txhawb nqa siab tshaj 16 units nyob rau hauv parallel |
|||
Daim ntawv thov
|
Hnub Ci Cia |
Hloov daim ntawv thov |
Base transceiver chaw nres tsheb |
Cov khoom siv sib txuas lus |
|
Central chaw ua haujlwm |
Telecommunication system |
Electronic cash registers |
Microprocessor-based chaw ua haujlwm |
|
UPS |
Cov ntawv thov hauv tsev |
Hloov rau SLA roj teeb |
Teeb pom kev zoo |
Nws yog ib qho tseem ceeb uas yuav tsum tau ua raws li kev ceev faj txog kev siv uas tau teev tseg hauv cov neeg siv phau ntawv kom paub meej tias kev ua tau zoo thiab kev nyab xeeb ntawm Lub Chaw Tso Hluav Taws Xob Hluav Taws Xob. Cov no suav nrog:
- Kev tshuaj xyuas tsis tu ncua thiab kev saib xyuas ntawm lub chaw nres tsheb fais fab
- Kev txhim kho kom raug thiab hauv av ntawm qhov chaw nres tsheb fais fab
- Ua raws li cov qauv kev nyab xeeb thiab cov cai
- Tsim nyog tuav thiab pov tseg cov roj teeb
Ntau lawm
Peb Qhov Project
Daim ntawv pov thawj
Txhawm rau kom cov neeg siv khoom tuaj yeem siv peb lub roj teeb kom zoo thiab nthuav dav kev lag luam tawm txawv teb chaws, peb tau mob siab rau cov khoom lag luam tshiab thiab cov ntawv pov thawj cov khoom, tam sim no peb tau txais cov ntawv pov thawj zoo li UN38.3, IEC62133, KC, CB, Air transport report, MSDS, Daim ntawv qhia txog kev thauj mus los hauv hiav txwv, RoHS, CE, UL1642, PSE BSMI, thiab lwm yam.
Certification thiab Logistics
Lub Chaw Tso Hluav Taws Xob Hluav Taws Xob tau txais cov ntawv pov thawj cuam tshuam, suav nrog CE, UL, IEC, thiab RoHS. Peb xyuas kom meej lub sijhawm thiab ua haujlwm zoo rau peb cov neeg siv khoom thoob ntiaj teb, suav nrog kev xa khoom, kev teeb tsa, thiab kev pabcuam tomqab muag.
Pob
Kev Them Nyiaj & Xa
|
Cov nqe lus them nqi |
T/T |
EXW |
30% tso nyiaj, 70% tshuav nyiaj ua ntej xa khoom |
|
FOB |
|||
|
CFR |
|||
|
CIF |
|||
|
Paypal |
Tus nqi qis dua USD3000 |
||
|
West Union |
Tus nqi qis dua USD5000 |
||
|
L/C |
Tus nqi siab dua USD50,000 los ntawm L/C thaum pom |
||
|
Lub sij hawm xa tuaj |
Los ntawm kev nthuav qhia |
FedEx |
7-10 hnub ua haujlwm li qub |
|
UPS |
|||
|
DHL |
|||
|
Los ntawm huab cua |
15-20 hnub ua haujlwm li qub |
||
|
Los ntawm hiav txwv |
35-45 hnub hauv ib txwm |
||
CEEB TOOM
● TSIS TXHOB luv luv, rov qab polarity, crush, los yog disassemble.
● TSIS TXHOB ua kom sov lossis hlawv.
● Tsis txhob tso rau hauv cov kua dej.
● Khaws ntawm 50 feem pua SoC hauv qhov chaw huv, txias, qhuav, thiab qhov cua, thiab rov ua dua txhua 6 lub hlis.
Lub Chaw Tso Hluav Taws Xob Hluav Taws Xob yog ib qho tshiab thiab txhim khu kev qha lub zog cia kev daws teeb meem tsim los ua kom tau raws li qhov xav tau ntau ntxiv rau cov khoom siv hluav taws xob ruaj khov thiab huv. Nrog nws cov yam ntxwv siab heev thiab cov txiaj ntsig, cov khoom no yog qhov kev xaiv zoo tshaj plaws rau kev siv hluav taws xob loj thiab kev lag luam thaum txo cov pa roj carbon monoxide.
