Qhov system no haum rau ob qho tib si hauv tsev thiab kev lag luam siv. Nws tuaj yeem ntsia tau rau hauv cov tsev, tsev, chaw ua haujlwm, thiab cov lag luam me.
Txoj Cai Ua Haujlwm:
Lub Tsev Roj Teeb Cia Lub Tsev ua haujlwm los ntawm kev khaws cov hnub ci ntau dhau uas tsim tawm thaum nruab hnub hauv cov roj teeb lithium-ion. Lub zog khaws cia no tuaj yeem siv thaum yav tsaus ntuj lossis thaum muaj hluav taws xob tawm los muab lub zog thaub qab.
Paub meej rau Tsev Roj Teeb Cia System:

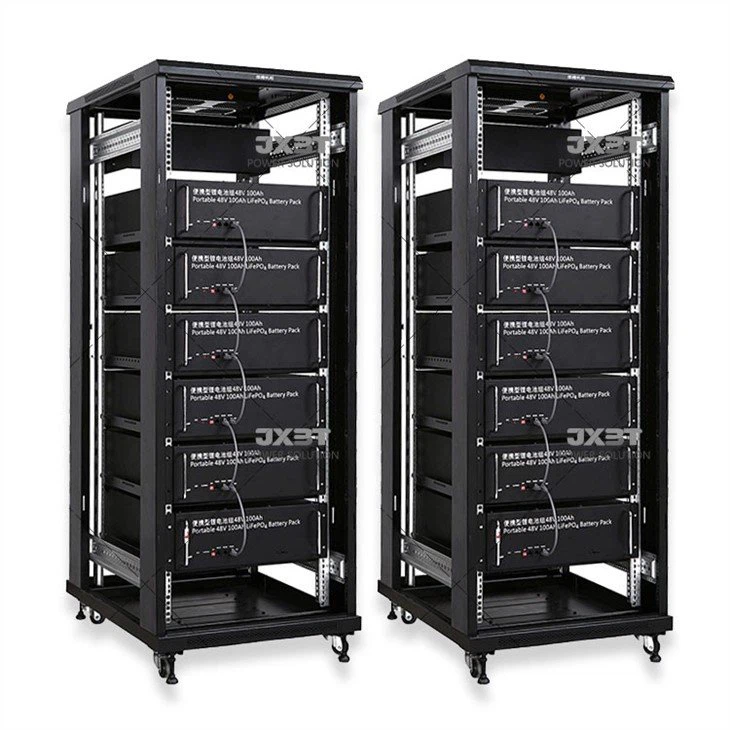

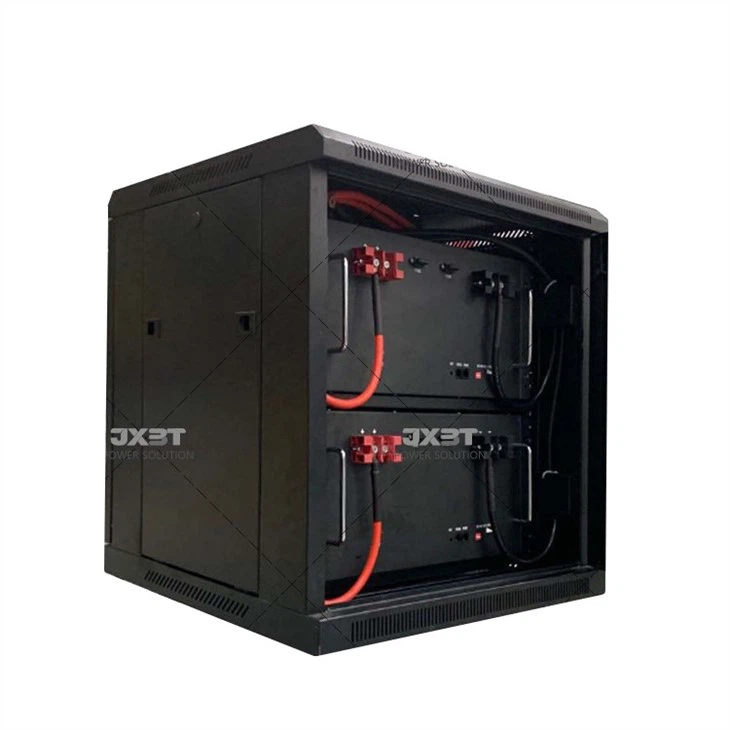

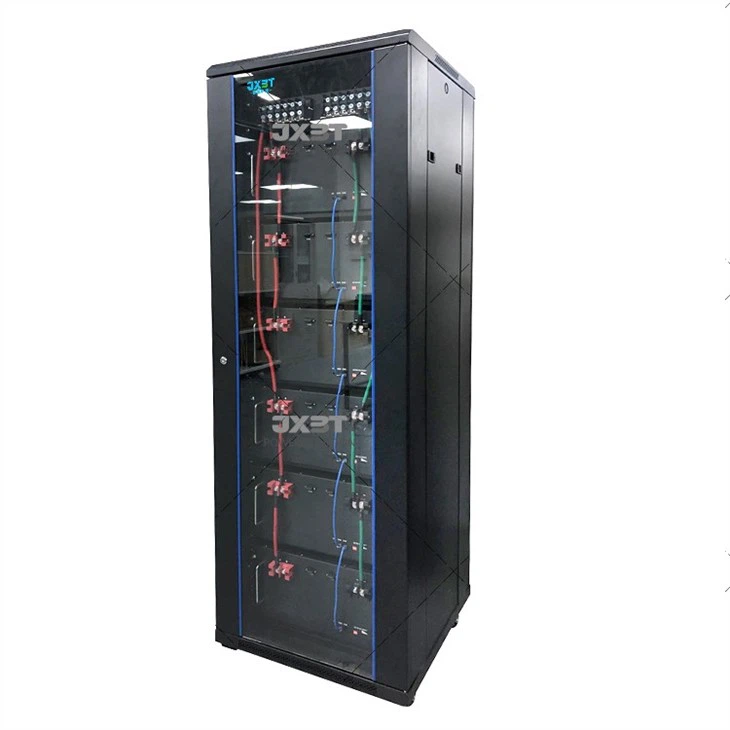

JXBT roj teeb System
Lub roj teeb lub peev xwm siab dua, lub hnub ci zog ntau dua yog khaws cia. Thaum lub roj teeb hnub ci tau teeb tsa ua ib feem ntawm lub hnub ci vaj huam sib luag, nws tuaj yeem khaws cov hluav taws xob hnub ci ntau dhau es tsis txhob xa rov qab mus rau daim phiaj. Yog tias lub hnub ci vaj huam sib luag tsim hluav taws xob ntau dua li qhov xav tau, lub zog ntau dhau mus rau kev them lub roj teeb.
Peb 48V roj teeb system txhawb lub hnub ci zog cia rau ob qho tib si kev lag luam thiab kev lag luam. Lub kaw lus tau tsim los ntawm kev sib koom ua ke ntawm Basic Storage Battery hauv kev sib txuas nrog ntse BMS (Battery Management System)
Nta
|
Lub neej voj voog siab - Ntau tshaj 6000 lub voj voog rau kev txo nqi tag nrho cov tswv cuab zoo. |
|
Lub neej ua haujlwm ntev dua - Lub roj teeb uas tsis muaj kev tu ncua nrog kev ruaj khov chemistry. |
|
Kev tiv thaiv Circuit Court Built-in - Roj Teeb Tswj System (BMS) suav nrog tiv thaiv kev tsim txom. |
|
Kev ua tau zoo ntawm kev khaws cia - Txog li 6 lub hlis vim qhov qis qis qis qis thiab tsis muaj kev pheej hmoo ntawm sulphation. |
|
Fast recharge - Txuag lub sij hawm thiab ua kom cov khoom tsim tau nrog tsawg downtime los ntawm superior nqi & tso tawm efficiency. |
|
Kev kub siab heev - Ntau yam kev ua haujlwm kub txog li 60 degrees. |
|
Lub teeb - Los ntawm cov roj teeb lithium ntawm siab Wh / Kg, nce txog 1/3 qhov hnyav ntawm SLA hom roj teeb. |
Nta thiab Muag Cov Ntsiab Lus
-Nws yog ib txoj hauv kev zoo los khaws thiab siv lub hnub ci zog.
-Nws txo koj qhov kev cia siab ntawm daim phiaj hluav taws xob thiab tuaj yeem muab kev ywj pheej ntawm lub zog.
-Nws muaj qhov zoo nkauj thiab niaj hnub tsim uas haum rau txhua lub tsev lossis chaw ua haujlwm.
-Nws yog ib qho yooj yim rau nruab thiab khiav lag luam.
|
Qauv |
TIAB SA 48200 |
TIAB SA 48400 |
TIAB SA 48500 |
TIAB SA 48600 |
|
Cov yam ntxwv dav dav |
||||
|
Nominal voltage |
51.2V |
51.2V |
51.2V |
51.2V |
|
Nominal Capacity @0.2C |
200 Aw |
400 Aw |
500 Aw |
600 Aw |
|
Nominal Zog |
10.24 kWh |
PEB 20.48 kWh |
PEB 25.60 kWh |
30.72 kWh os |
|
Qhov Loj (WxDxH) |
600x600x850mm |
600x600x1400mm |
600x600x1600mm |
600x600x1800mm |
|
Kwv yees li. Qhov hnyav |
30.3 KWG |
49,5 KG |
50.6KG ib |
51.8 KWG |
|
Cov yam ntxwv hluav taws xob |
||||
|
Kev khiav hauj lwm voltage |
42V~54V |
44.8V~57.6V |
42V~53.2V |
42V~53.2V |
|
Max. Kev them nyiaj tam sim no |
100A |
200A |
200A |
300A |
|
Max. Tshem tawm tam sim no |
100A |
200A |
200A |
300A |
|
Discharge Cut-off Voltage |
44.8V |
44.8V |
44.8V |
44.8V |
|
Faraday Charging Efficiency |
Ntau dua lossis sib npaug li 98 feem pua |
|||
|
Hluav taws xob them Efficiency |
Ntau dua lossis sib npaug li 92 feem pua |
|||
|
Internal Resistance |
80mΩ |
55mΩ |
60mΩ |
60mΩ |
|
Kev tso tawm tus kheej |
Tsawg dua lossis sib npaug li 3.5 feem pua |
|||
|
Lub neej voj voog |
6000 Cycle |
|||
|
Cov xwm txheej ua haujlwm |
||||
|
Kev them nyiaj ua haujlwm kub |
0 degree ~ 45 degree |
|||
|
Tshem tawm kev ua haujlwm kub |
-10 degree ~ 45 degree |
|||
|
Cia Kub |
-20 degree ~ 45 degree |
|||
|
Cia Duration |
12 Lub Hlis 20 degree ~ 25 degree |
|||
|
Dej Dust Resistance |
IP30 |
|||
|
Parallel Function |
Kev txhawb nqa siab tshaj 16 units nyob rau hauv parallel |
|||
Daim ntawv thov
|
Hnub Ci Cia |
Hloov daim ntawv thov |
Base transceiver chaw nres tsheb |
Cov khoom siv sib txuas lus |
|
Central chaw ua haujlwm |
Telecommunication system |
Electronic cash registers |
Microprocessor-based chaw ua haujlwm |
|
UPS |
Cov ntawv thov hauv tsev |
Hloov rau SLA roj teeb |
Teeb pom kev zoo |
Ntau lawm
Logistics thiab Tsheb thauj mus los
Lub Tsev Roj Teeb Cia System tau xa mus rau hauv cov khoom ntim ruaj khov thiab ruaj ntseg kom ntseeg tau tias nws tuaj txog ntawm koj qhov chaw nyab xeeb. Lub kaw lus yooj yim rau nruab thiab tuaj yeem ua tau los ntawm tus kws tshaj lij hluav taws xob tsim nyog.
Cov khoom yog ib txoj hauv kev niaj hnub thiab tshiab los khaws lub zog tsim los ntawm cov hnub ci vaj huam sib luag. Nws muab koj lub zog thaub qab txhim khu kev qha thaum lub sijhawm hluav taws xob tawm, txo koj cov nqi hluav taws xob, thiab txo koj cov pa roj carbon monoxide. Nrog nws cov sleek thiab niaj hnub tsim thiab yooj yim installation txheej txheem, qhov no system yog ib tug txaus nyiam thiab nqi-zoo kev xaiv rau ob qho tib si tsev thiab coj mus muag siv.
Daim ntawv pov thawj
Txhawm rau kom cov neeg siv khoom tuaj yeem siv peb lub roj teeb kom zoo thiab nthuav dav kev lag luam tawm txawv teb chaws, peb tau mob siab rau cov khoom lag luam tshiab thiab cov ntawv pov thawj cov khoom, tam sim no peb tau txais cov ntawv pov thawj zoo li UN38.3, IEC62133, KC, CB, Air transport report, MSDS, Daim ntawv qhia txog kev thauj mus los hauv hiav txwv, RoHS, CE, UL1642, PSE BSMI, thiab lwm yam.
Pob
Kev Them Nyiaj & Xa
|
Cov nqe lus them nqi |
T/T |
EXW |
30% tso nyiaj, 70% tshuav nyiaj ua ntej xa khoom |
|
FOB |
|||
|
CFR |
|||
|
CIF |
|||
|
Paypal |
Tus nqi qis dua USD3000 |
||
|
West Union |
Tus nqi qis dua USD5000 |
||
|
L/C |
Tus nqi siab dua USD50,000 los ntawm L/C thaum pom |
||
|
Lub sij hawm xa tuaj |
Los ntawm kev nthuav qhia |
FedEx |
7-10 hnub ua haujlwm li qub |
|
UPS |
|||
|
DHL |
|||
|
Los ntawm huab cua |
15-20 hnub ua haujlwm li qub |
||
|
Los ntawm hiav txwv |
35-45 hnub hauv ib txwm |
||
FAQ
Q: Koj puas txhawb OEM / ODM kev pabcuam?
A: Yog lawm, txais tos OEM / ODM xaj, raws li lub chaw tsim khoom roj teeb kev tshaj lij rau ntau tshaj 10 xyoo, peb tuaj yeem tsim txhua yam ntawm cov roj teeb zoo raws li cov neeg siv khoom xav tau.
Q: Yam khoom twg koj tuaj yeem muab tau?
A: Portable thiab Lub Tsev Hluav Taws Xob cia roj teeb, UPS roj teeb, Forklift roj teeb, E-bike roj teeb, Motorcycle roj teeb, Base chaw nres tsheb roj teeb, ESS roj teeb, SLA hloov roj teeb, Hnub ci txoj kev teeb roj teeb, thiab lwm yam.
Cim npe nrov: Tuam Tshoj roj teeb lub tsev cia khoom, Tuam Tshoj lub tsev roj teeb cia system lwm tus neeg
