Lub roj teeb no zoo tagnrho rau ntau yam kev siv, suav nrog kev ruaj ntseg, UPS systems, teeb pom kev zoo thaum muaj xwm ceev, hnub ci zog, thiab ntau ntxiv.
Txoj Cai Ua Haujlwm

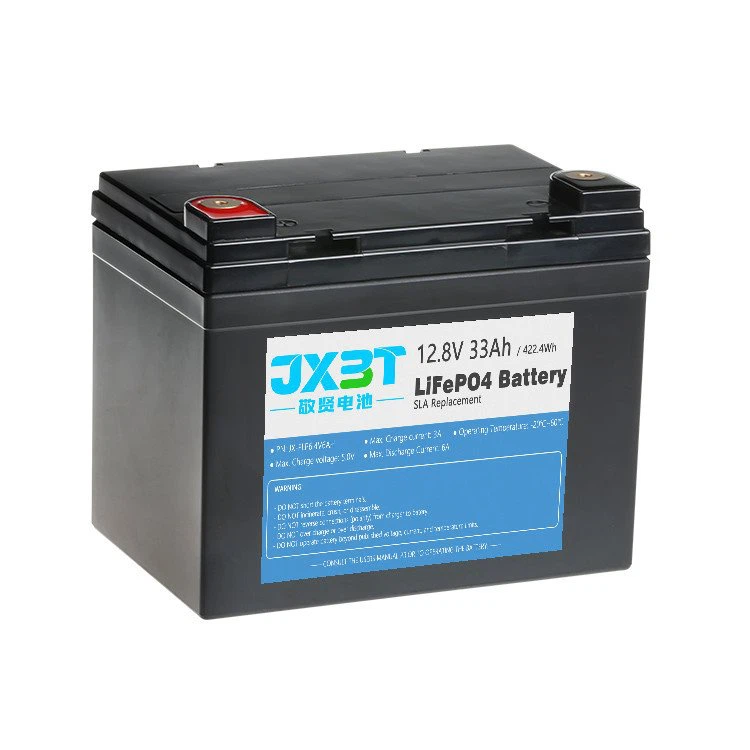

Lub 12V 33AH SLA Hloov Roj Teeb yog lub roj teeb uas muaj cov kua qaub kaw. Nws ua haujlwm los ntawm kev hloov cov tshuaj siv hluav taws xob rau hluav taws xob los ntawm cov tshuaj tiv thaiv electrochemical. Lub roj teeb no muaj cov qauv tsim rov qab, tso cai rau nws siv ntau zaus.
Cov ntsiab lus rau 12v Lithium roj teeb rau Golf Cart:
JXBT SLA Hloov Roj Teeb
JXBT Battery Bank series yog Lithium Iron Phosphate (LiFePO4) Roj teeb nrog SLA (Sealed Lead Acid) roj teeb vaj tsev. Lub ntsaws & ua si nta ua rau nws yooj yim heev rau ntau daim ntawv thov, tshwj xeeb tshaj yog thaum nws tau thov rau kev hloov SLA ncaj qha. Lub series los nrog ntau qhov voltage thiab muaj peev xwm ntau yam rau ntau yam ntawm lub zog thiab kev cia khoom.
|
12v Lithium roj teeb rau Golf Cart |
||||
|
|
JX-LFP12.8V30AH |
JX-LFP12.8V33AH |
JX-LFP12.8V42AH |
JX-LFP12.8V54AH |
|
Nominal voltage |
12.8V |
12.8V |
12.8V |
12.8V |
|
Nominal Peev Xwm |
30 Aw |
33 Aw |
42 Aw |
54 aw ah |
|
Zog |
384 wb |
422.4 wb |
537.6 wb |
691.2 wb |
|
Lub neej voj voog |
Ntev mus txog 6000 ntxiv mus |
|||
|
Tus nqi tso tawm tus kheej |
Tsawg dua lossis sib npaug li 3.5 feem pua ntawm ib hlis ntawm 25 degree |
|||
|
Kev them nqi hluav taws xob |
14.6±0.2V |
|||
|
Charge hom |
Ntawm {{0}} degree ~ 45 degree, 0.2C CC them rau 4.2V, ces CV them txog tam sim no poob rau 0.02C (CC / CV) |
|||
|
MAX. Kev them nyiaj tam sim no |
15A |
16.5A |
21A |
27 UA |
|
MAX. Tshem tawm tam sim no |
30A |
30A |
42A |
54A |
|
MAX. Pulse Tam sim no |
60A(＜3S) |
60A(＜3S) |
60A(＜3S) |
120A(＜3S) |
|
Discharge Cut-off Voltage |
10.0V |
10.0V |
10.0V |
10.0V |
|
Charge Temperature |
0 degree ~ 45 degree @ 60 ± 25 feem pua Relative Humidity |
|||
|
Tshem Tawm Kub |
-20 degree ~ 60 degree @ 60 ± 25 feem pua Relative Humidity |
|||
|
Cia Kub |
0 degree ~ 45 degree @ 60 ± 25 feem pua Relative Humidity |
|||
|
Dej Dust Resistance |
IP55 |
|||
|
Casing |
Yas / ABS |
|||
|
Qhov ntev |
165 * 175 * 125 * 125mm |
195 * 130 * 156 * 167mm |
197 * 165 * 170 * 170mm |
229 * 138 * 212 * 217 hli |
|
Kwv yees li. Qhov hnyav |
3.9KG ib |
4.9KG ib |
5.7KG ib |
6.7KG ib |
|
Terminal |
M5 |
M6 |
M6 |
M6 |
Nta thiab Cov txiaj ntsig
Ib qho ntawm cov yam ntxwv tseem ceeb ntawm lub roj teeb no yog nws lub neej ntev, uas tso cai rau nws xa lub zog ruaj khov rau lub sijhawm ntev. Tsis tas li ntawd, nws yooj yim rau nruab thiab ua haujlwm, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau ob qho tib si DIY cov neeg nyiam thiab cov kws tshaj lij. Lub roj teeb no tseem muaj zog heev thiab tiv taus kev poob siab thiab kev co, kom ntseeg tau tias nws tuaj yeem tiv taus txawm tias qhov hnyav tshaj plaws.
Daim ntawv thov
Ntau lawm
Kev ceev faj rau kev siv
Txhawm rau kom muaj kev nyab xeeb thiab siv tau zoo ntawm lub roj teeb no, nws yog ib qho tseem ceeb kom ua raws li qee qhov kev ceev faj. Piv txwv li, ib txwm tuav lub roj teeb nrog kev saib xyuas kom tsis txhob muaj kev puas tsuaj lossis raug mob. Tsis tas li ntawd, tsuas yog siv lub roj teeb hauv cov ntawv teev npe thiab tsis txhob overcharge lossis undercharging.
Kev them nyiaj yug daim ntawv pov thawj
Lub roj teeb no yog UL-certified, kom nws ua tau raws li cov qauv siab tshaj plaws ntawm kev ua tau zoo, kev nyab xeeb, thiab kev ua haujlwm zoo.
Txhawm rau kom cov neeg siv khoom tuaj yeem siv peb lub roj teeb kom zoo thiab nthuav dav kev lag luam tawm txawv teb chaws, peb tau mob siab rau cov khoom lag luam tshiab thiab cov ntawv pov thawj cov khoom, tam sim no peb tau txais cov ntawv pov thawj zoo li UN38.3, IEC62133, KC, CB, Air transport report, MSDS, Daim ntawv qhia txog kev thauj mus los hauv hiav txwv, RoHS, CE, UL1642, PSE BSMI, thiab lwm yam.
Logistics thiab Tsheb thauj mus los
Lub roj teeb no tuaj yeem xa mus rau txhua qhov chaw hauv ntiaj teb, thiab peb muab ntau yam kev thauj mus los kom haum rau koj cov kev xav tau. Peb pab neeg logistics paub txog kev ua kom muaj kev nyab xeeb thiab xa khoom raws sij hawm ntawm txhua qhov kev txiav txim.
Kev Them Nyiaj & Xa
|
Cov nqe lus them nqi |
T/T |
EXW |
30% tso nyiaj, 70% tshuav nyiaj ua ntej xa khoom |
|
FOB |
|||
|
CFR |
|||
|
CIF |
|||
|
Paypal |
Tus nqi qis dua USD3000 |
||
|
West Union |
Tus nqi qis dua USD5000 |
||
|
L/C |
Tus nqi siab dua USD50,000 los ntawm L/C thaum pom |
||
|
Lub sij hawm xa tuaj |
Los ntawm kev nthuav qhia |
FedEx |
7-10 hnub ua haujlwm li qub |
|
UPS |
|||
|
DHL |
|||
|
Los ntawm huab cua |
15-20 hnub ua haujlwm li qub |
||
|
Los ntawm hiav txwv |
35-45 hnub hauv ib txwm |
||
Ntsiab nta
● Tus nqi siab tshaj tawm kev ua haujlwm vim kev siv tshuab nruj sib dhos
● Muaj zog cua sov dissipation thiab dav kev khiav hauj lwm kub ntau yam
● Lub zog siab dua: Muab ob npaug ntawm lub zog ntawm SLA roj teeb, tuav lub zog siab
● Lithium Iron Phosphate chemistry zam qhov kev pheej hmoo ntawm kev tawg lossis tawg vim muaj kev cuam tshuam ntau dhau los yog qhov xwm txheej luv luv
Lub 12V 33AH SLA Hloov Roj Teeb yog lub zog muaj zog thiab txhim khu kev qha uas muab kev ua tau zoo tshwj xeeb rau ntau yam kev siv. Nrog nws lub neej ntev, kev yooj yim ntawm kev siv, thiab kev ua haujlwm siab, lub roj teeb no yog kev hloov kho tus nqi zoo rau koj cov tshuab uas twb muaj lawm. Tiv tauj peb hnub no kom paub ntau ntxiv txog cov khoom no lossis tso ib qho kev txiav txim.
Cim npe nrov: 12v 33ah sla hloov roj teeb, Tuam Tshoj 12v 33ah sla hloov roj teeb lwm tus neeg
